1-1/4" x 8' DOUBLE CHAMFER (1.25 x 0.75 x 45)
Victory Bear’s Bulkhead Double Chamfer is a cutting-edge PVC forming solution designed for efficiency and superior quality. Compatible with 3/4? form board or standard plywood, reducing lumber usage by 40% to 60%. This savings significantly cuts material costs while ensuring a flawless concrete finish that minimizes post-tilt labor. Featuring our patented Flex-Edge Seal technology, the Bulkhead prevents concrete seepage, creating sharp, clean lines, and its hidden fasteners maintain a smooth surface. Available in both standard and one-piece series, the Bulkhead can be installed using a hidden fastening system or glued to the concrete slab. Compatible with our #803 Topside Double Chamfer, Victory Bear Bulkhead system is perfect for commercial, industrial, or residential projects. Choose Victory Bear Bulkhead to enhance your workflow, reduce costs, and achieve professional finishes with every concrete pour.
8' HEAVY DUTY DOUBLE CHAMFER (2.0 x 0.75 x 45 DEG)
HIGH DOUBLE CHAMFER 2 x 3/4! Our High Double Chamfer was designed with ease of use and quality of finish in mind. Its labor saving features include a rigid PVC structure for superior finish to wood, flexible PVC fins to eliminate caulking, and high side walls to allow quick and easy board insertion.
DAYTON P-51 4 TON SWIFT LIFT LIFTING EYE
NON STOCK ITEM. RENTAL IN OKLAHOMA ONLY. The Dayton Superior P51 Swift Lift® Lifting Eye is a high-quality steel casting. The P51 lifting eye fits into the recess formed by the recess plug and engages the spherical head of the P52 Swift Lift® Anchor. The connection of the eye to the anchor can only be accomplished with the ball of the lifter facing the surface of the concrete. Accidental disengagement is prevented by a gravity-actuated safety pin. The P51 Swift Lift® Lifting Eye is available in two sizes that are recommended for tilt-up edge lift applications. The 2-Ton unit that mates with the 9/16” diameter Swift Lift® anchor and the 4-Ton unit that utilizes the 3/4” diameter anchor. P-51 Swift Lift® Lifting Eye is available in 2T, 4T and 8T.

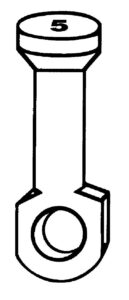

DAYTON P-53 2.5 TON SWIFT LIFT EYE ANCHOR
The Dayton Superior Swift Lift Eye Anchor (P53) is similar to the P52 anchor but has an eye at the foot to accept P60 Tension Bars. The P53 anchor is used primarily in thin sections, thin panels of lightweight concrete or shapes that must be handled at concrete compressive strengths below 2,000 psi. P53 anchors are available in 1, 2, 3, 4, 8 and 16 T capacities and each has its load rating embossed on the head. NOTE: P60 Tension Bar must be used with this anchor to achieve loads.
DAYTON P-53 5 TON SWIFT LIFT EYE ANCHOR
The Dayton Superior Swift Lift Eye Anchor (P53) is similar to the P52 anchor but has an eye at the foot to accept P60 Tension Bars. The P53 anchor is used primarily in thin sections, thin panels of lightweight concrete or shapes that must be handled at concrete compressive strengths below 2,000 psi. P53 anchors are available in 1, 2, 3, 4, 8 and 16 T capacities and each has its load rating embossed on the head. NOTE: P60 Tension Bar must be used with this anchor to achieve loads.

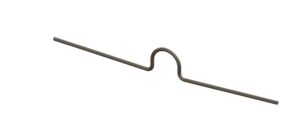

DAYTON P-59 2 TON SHEAR BAR SL
The Dayton Superior Swift Lift Shear Bars (P59) and Smooth Wire Shear Bars (P59SW) are utilized when edge-lifting precast elements. The shear bar is secured tightly to the recess plug and at the time of lift helps to transfer the shear load deeper into the concrete. The P59 Shear Bars are designed to snap into the built-in clips on the P54 Recess Plug.
DAYTON P-59 4 TON SHEAR BAR FOR SL
Dayton Superior Swift Lift Shear Bars (P59) are utilized when edge-lifting precast elements. The shear bar is secured tightly to the recess plug and at the time of lift helps to transfer the shear load deeper into the concrete. The P59 Smooth Wire Shear Bar is designed to snap into the built-in clips on the P54 Recess Plug.
DAYTON P-60 REINFORCING BAR FOR 2.5 T
SL ANCHOR-#3 BAR
DAYTON P-60 REINFORCING BAR FOR SWIFT
LIFT ANCHOR #5 BAR
