BOSTD TYPE 1 GEOGRID 13' X 328' (ODOT APPROVED)
All geometric properties are Nominal Values and may vary. All mechanical properties are based on the manufacturer’s laboratory test results at 21¬±1 C. Unless indicated otherwise, values shown are minimum average roll values determinate in accordance with ASTM D4759. Expressed as a comparison of ASTM D7737 strength to ASTM D6637 strength of the same sample. ASTM D7737 performed at 10% per minute strain rate. Using specimens 2 ribs wide with ribs transverse to the specimen cut flush with the exterior edges of the ribs in the direction of the specimen. Resistance to in-plane rotational moment of 20 kg-cm. 500 hour exposure. 120 day immersion testing. Expressed as a percentage of Ultimate Tensile Strength BOSTD America reserves the right to change this product specification at any time. The user is responsible to verify se/reference of the latest Product Data Sheet. Contact BOSTD America to obtain the latest Product Data Sheet.

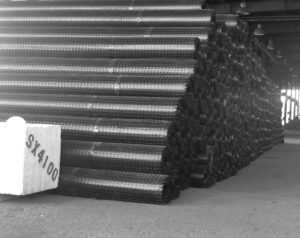

BOSTD TYPE 2 GEOGRID 13' X 328' (ODOT APPROVED)
All geometric properties are Nominal Values and may vary. All mechanical properties are based on the manufacturer’s laboratory test results at 21¬±1 C. Unless indicated otherwise, values shown are minimum average roll values determinate in accordance with ASTM D4759. Expressed as a comparison of ASTM D7737 strength to ASTM D6637 strength of the same sample. ASTM D7737 performed at 10% per minute strain rate. Using specimens 2 ribs wide with ribs transverse to the specimen cut flush with the exterior edges of the ribs in the direction of the specimen. Resistance to in-plane rotational moment of 20 kg-cm. 500 hour exposure. 120 day immersion testing. Expressed as a percentage of Ultimate Tensile Strength BOSTD America reserves the right to change this product specification at any time. The user is responsible to verify use/reference of the latest Product Data Sheet. Contact BOSTD America to obtain the latest Product Data Sheet.
GEOGRID, TYPE I
13.12' X 246' (358.6 SY RL)
GEOGRID, TYPE II
13.12' X 164' (239.1 SY RL)
TYPE 1 BIAXIAL GEOGRID
TenCate Mirafi® BXG biaxial geogrids are used for base course reinforcement and soil stabilization applications. They offer high strength at low strain and are designed for maximum bearing capacity and shear resistance. TenCate Mirafi® BXG geogrids are constructed of high tenacity, high molecular weight woven polyester to deliver increased passive bearing resistance. Coated with a polymer coating, TenCate Mirafi® BXG geogrids provide optimum interaction in all soil types.
TYPE 1 BIAXIAL GRID
12.92' X 164' -235.43 SY/ROLL
TYPE 2 BIAXIAL GRID
12.92' X 164' - 235.43 SY/ROLL
TYPE II BIAXIAL GEOGRID
TenCate Mirafi® BXG biaxial geogrids are used for base course reinforcement and soil stabilization applications. They offer high strength at low strain and are designed for maximum bearing capacity and shear resistance. TenCate Mirafi® BXG geogrids are constructed of high tenacity, high molecular weight woven polyester to deliver increased passive bearing resistance. Coated with a polymer coating, TenCate Mirafi® BXG geogrids provide optimum interaction in all soil types.
