1/2"X 5-1/2" "L" COIL BOLT

FULLY THREADED

12" TYPE 4AC HALF HANGER

12", 14", 16", 20" AND 42" BRIDGE HANGERS 90° ENDS EG

The C60 - Type 1 - Pres-Steel Hanger is used for a zero haunch condition and consists of two 1/2" end sections welded to a single wire strut. The hanger allows installation and adjustment from the top of the formwork and works equally well on steel or precast concrete beams.

12", 14", 16", 20" AND 42" GALV BRIDGE HANGER WITH 15° ENDS

The C60 - Type 8 - Pres-Steel Hanger is similar to the standard Type 1 hanger except the two 1/2" end sections are set at 15° to provide additional clearance for supporting the deck formwork. The C60 - Type 8 - Pres-Steel Hanger is available in standard and heavy versions.

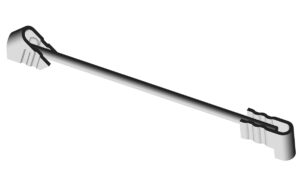

12", 14", 16", 20" AND 42" HD BRIDGE HANGER WITH 45° AND 90° ENDS-GALV

The C60 - Type 4A - Pres-Steel Hanger is fabricated with one 90° and one 45° 1/2" interlock-type end sections welded to a substantial wire strut. The Type 4A hanger is a high-strength hanger used to support bridge deck exterior formwork and is especially designed to react to lateral forces prevalent in many forming conditions.

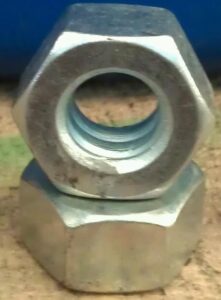

BRIDGE HANGER NUTS GALV

C-24 15" TYPE 4AC HALF HANGER

W/1 B13 1/2" COIL NUT EACH

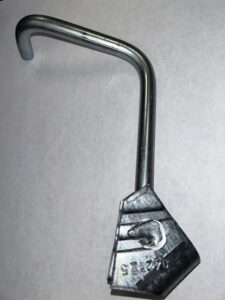

C-24 TYPE 4-APR ELECTRO GALV PRECAST HALF HANGER

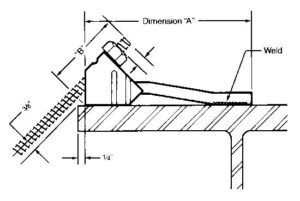

C-24 TYPE 4AC HALF HANGER 12" GALVANIZED

C24 45° Pres-Steel Half Hangers are manufactured with a single 1/2" end section welded to a jogged wire strut and are used where conditions prevent the use of standard double-ended hangers. Standard Style AC hangers measure 12" from the centerline of the bolt to the end of the strut. This style hanger is designed to be welded to the rebar stirrups of precast concrete bridge beams.
